Waste dump truck tarpaulin controller

User Manual

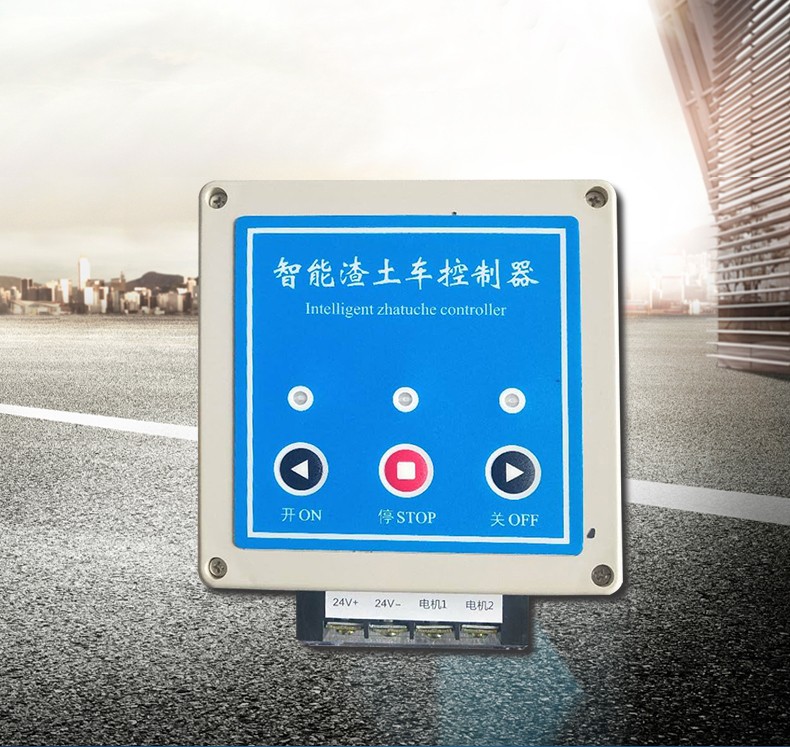

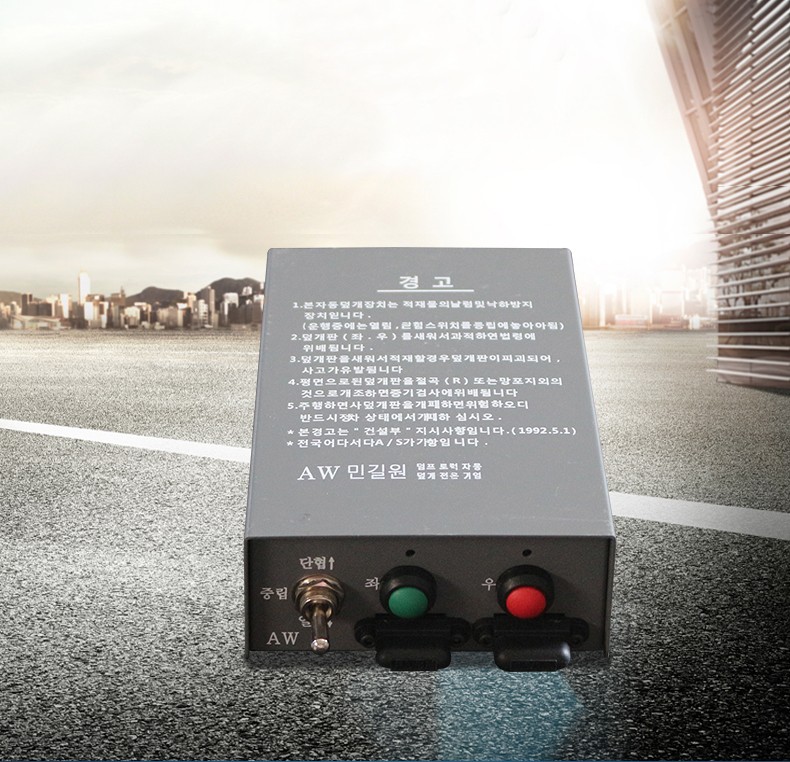

C24D50B2-ZTC is an intelligent tarpaulin controller for dump trucks. This controller uses a high-performance MCU and advanced motion control algorithms, fully meeting the requirements of opening and closing the tarpaulin of the dump truck. It also has powerful protection circuits (time protection, locked rotor protection, overcurrent protection, temperature protection, and limit protection functions) inside, which can set soft start time and soft stop time, effectively improving the life of the motor. It can also set the protection current value, suitable for various specifications of motors. The controller also has a fault alarm output terminal and a very powerful anti fraud function, which can replace multiple sensors to achieve anti fraud function. It is more reliable for communication with the Beidou positioning system in the cab.

1、 Product Features:

◆ Built in wireless remote control. ◆ Top cover limit function. ◆ Blockage protection function.

◆ Current protection function. ◆ Temperature protection function. ◆ Soft start function.

◆ Soft stop function. ◆ Fault alarm output port.

◆ Sustainable upgrade, combined with Beidou positioning system communication.

2、 Performance indicators:

1. Power supply voltage: 18-28VDC. 36V 48V customizable

2. Standby current: 15mA.

3. Continuous working current: 40A Current protection value: 60A.

4. Soft start time: 5 seconds

5. Soft stop time: 3 seconds

6. Temperature protection status: The motor stops running at 90 ℃.

7. Dimensions: L * W * H=178mm * 178mm * 65mm8, Weight: 700g

按鍵；電機運行，篷布開啟。

　　單擊“停”按鍵；電機停止運行。
　　注：如篷布的開啟與關閉動作正好相反時，可將電機正負極互換，解決問題。
